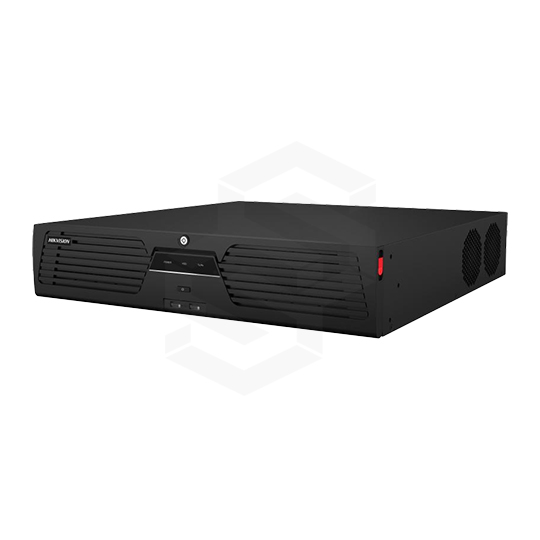

Nvr De 32Ch 8Hdd 320/256Mbps 4K32Ch Ip 12MpReproducción 16Ch SimultáneosAlarmas 16In/Out Raid 0,1,5,6,10Tasa De Bits De Grabación 320/256MbpsAudio Two Way 1 Out8Hdds 6Tb C/UDim: 445X470X90Mm Peso 10KgIncluye Fuente 110 Vac
SKU:DS-9632NI-M8
Compartir este producto:
- Image Sensor 2 MP CMOS
- Max. Resolution 1920 (H) × 1080 (V)
- Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
- Day & Night ICR
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
- Lens Mount M12
- Image
- Image Parameters Switch STD/HIGH-SAT
- Image Settings Brightness, Sharpness, Smart IR
- Frame Rate TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
- Day/Night Mode Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR) Digital WDR
- Image Enhancement BLC, HLC
- White Balance Auto/Manual
- AGC Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- General
- Material Metal
- Dimension Φ 70 mm × 137.8 mm (Φ 2.76" × 5.43")
- Approx. 260 g (0.57 lb.)
- Operating Condition ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
- Power Supply 12 VDC ± 25%
- Consumption Max. 3 W
- IR Range Up to 25 m
- Approval
- Protection IP67
